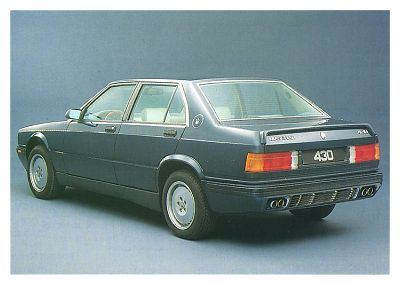

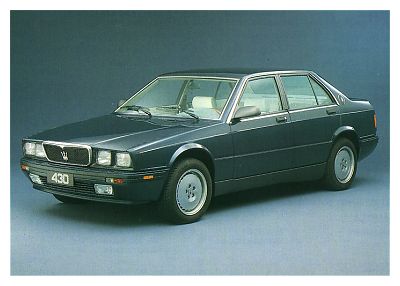

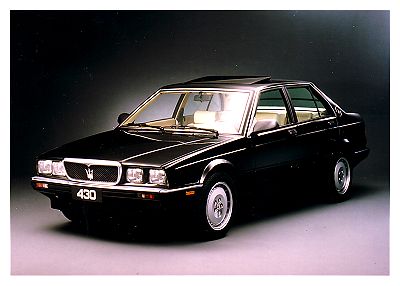

Maserati 430S


Photo by kind permission of Maserati SpA
430
Years of construction 1987-1991
Four-door four-seater sports saloon
2.8-litre V6 @ 90°
Two overhead camshafts with three valves per cylinder
Engine cubic capacity - 2790cc
Bore 94 mm x Stroke 67 mm
Compression ratio - 7.8:1
Induction by two IHI turbochargers via Weber electronic fuel injection
Power output - 250 bhp @ 5600 rpm
Weight - 1180 kg
Top speed - 240+ kph
995 models constructed

51 (2-litre) right-hand drive models produced between 1989 and 1991
108 (2.8-litre) right-hand drive models between 1989 and 1991

With catalytic convertor power output 225 bhp @ 5500 rpm and weight increased to 1247 kg.

BACK
The updated 430


Introduced in 1987, the body and mechanics of the Maserati 430 were up-dated in 1990.

The front and rear bumpers were reshaped: to a more rounded and modern design. They are practically the same as those fitted on the 4.24v. The front grill remained unchanged, with its chromed outer frame. On the boot lid a new discreet spoiler was added to improve aerodynamics, a typical feature of the 2 liter, 24-valve saloon. The wheel rims of the earlier design were maintained (instead of the later 7-spoke rims) to enhance a more classic rather than sporty style.

The car was equipped with a catalyst emission control system with Lambda sensor as standard.

The 430 was avaliable with a 5-speed manual gearbox or an optional 4-speed automatic transmission.

Maximum power 225 bhp at 5500 rpm and maximum torque 363 Nm (37 k/gms) at 3500 rpm

Two turbochargers and two front air-to-air intercoolers.

Disc brakes on all four wheels, front ventilated discs with floating calipers and some models were fitted with an ABS braking system.

Light alloy wheel rims: TA 15", tyres 205x55 VR15 or 205x55 ZR15.

Performances: top speed over 230 kph with manual gearbox and 230 kph with automatic transmission.
